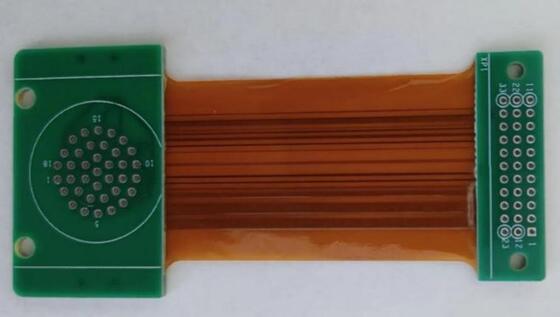

1.2mm Thickness Rigid Flex PCB Featuring LF HAL Surface Delivering Performance in Flexible Circuit Designs

Product Description:

The Rigid Flex PCB is an advanced and highly reliable type of circuit board that combines the benefits of both rigid and flexible substrates into a single, cohesive unit. This innovative design is widely recognized in the electronics industry for its ability to provide exceptional performance in compact and complex assemblies. Known alternatively as Flexible Rigid Printed Wiring Board, Flex-Rigid Printed Circuit Board, or Rigid-Flexible Printed Wiring Board, this product is engineered to meet the demanding requirements of modern electronic devices, ensuring durability, flexibility, and superior electrical performance.

Technical Parameters:

Applications:

The Customized Rigid-Flexible Printed Wiring Board, originating from China, is an advanced solution designed to meet the diverse needs of modern electronic applications. With certifications including ISO90001, UL, ROHS, and REACH, this product guarantees high quality, safety, and environmental compliance. Its minimum order quantity of just 1 piece, along with negotiable pricing and payment terms, offers exceptional flexibility for both small-scale and large-scale projects. The packaging details feature a vacuum package to ensure the product remains in optimal condition during storage and transportation.

This Flexible Rigid Printed Wiring Board is ideal for use in complex electronic devices where space-saving and reliable connections are critical. The board’s thickness of 1.6 mm and copper thickness of 1OZ provide a perfect balance between durability and flexibility, making it suitable for applications that require both rigid and flexible circuit sections. Additionally, the finished treatment with LF HAL enhances conductivity and protects against corrosion, extending the lifespan of the circuit board.

The Rigid-Flexible Printed Circuit Board supports a range of solder mask color options, including green, red, blue, black, white, and yellow, allowing for customization based on aesthetic or functional requirements. It is designed to be stored within a temperature range of 23℃±5℃ to maintain its properties and ensure consistent performance over time. The flexible delivery time further supports varied production schedules and urgent project deadlines.

Typical application occasions for this Rigid-Flexible Printed Wiring Board include consumer electronics, medical devices, automotive electronics, aerospace systems, and industrial equipment. Its ability to combine rigid and flexible circuit elements makes it especially suitable for wearable technology, smartphones, drones, and other compact, multi-functional devices. By enabling complex three-dimensional designs and reducing assembly weight and size, this Flexible Rigid Printed Wiring Board enhances product reliability and functionality in demanding environments.

In conclusion, the Customized Rigid-Flexible Printed Wiring Board from China is a highly adaptable and reliable choice for engineers and manufacturers seeking superior quality, certification-backed performance, and customizable options. Whether for prototyping or mass production, its features and flexible terms make it an excellent solution for a wide range of electronic applications.

Support and Services:

Our Rigid Flex PCB product is designed to meet the highest standards of quality and reliability. To ensure optimal performance, we provide comprehensive technical support and services throughout the product lifecycle.

Technical support includes assistance with design guidelines, material selection, stack-up configurations, and signal integrity considerations specific to rigid flex technology. Our experts are available to help troubleshoot manufacturing challenges and provide recommendations for best practices in assembly and testing.

We offer design review services to help identify potential issues early and optimize the rigid flex PCB layout for durability and functionality. Our team can also provide custom solutions tailored to unique application requirements.

In addition to technical support, we provide detailed documentation, including fabrication notes, handling instructions, and reliability data to assist with your project planning and quality assurance.

Our goal is to partner with you to deliver innovative, high-performance rigid flex PCB solutions that meet your technical and business needs.
